AES/EBU- and DMX-conformant, highly flexible. Very good shielding through the use of copper spiral shielding and a fleece vaporized with aluminum. Extremely robust with an especially strong jacket. Only a little more expensive than a standard microphone cable. For networking of scanners, lighting units, digital mixing boards, etc.. For indoor and outdoor installation. For connection of digital audio amplifiers, DAT-recorders, etc..
Construction: (2LI2YS 0.34 mm)
(ST)CY Jacket: PVC 7.0 mmFRNC:5.6 mm
No. of inner conductors: 2 x 0.34 mm (AWG 22)
Copper strand per conductor: 19 x 0.15 mm
Conductor insulation: Foam/skin-PE 1.50 mm
Shielding: copper spiral shielding + aluminum steamed fleece
Shielding factor: 100 %
Temperature range: -25Â C to +70Â C
Fire load per m: 0.17 kWh (520-0051 F: 0.23 kWh)
Weight per 1 m: 50 g
Packaging: 15 m roll Electrical data
Capac. cond./cond. per 1 m: 115 pF
Cond. resistance per 1 km: 53 ohmsInsulation resist. per 1 km >1 GohmsSurge
Impedance: 110 ohms

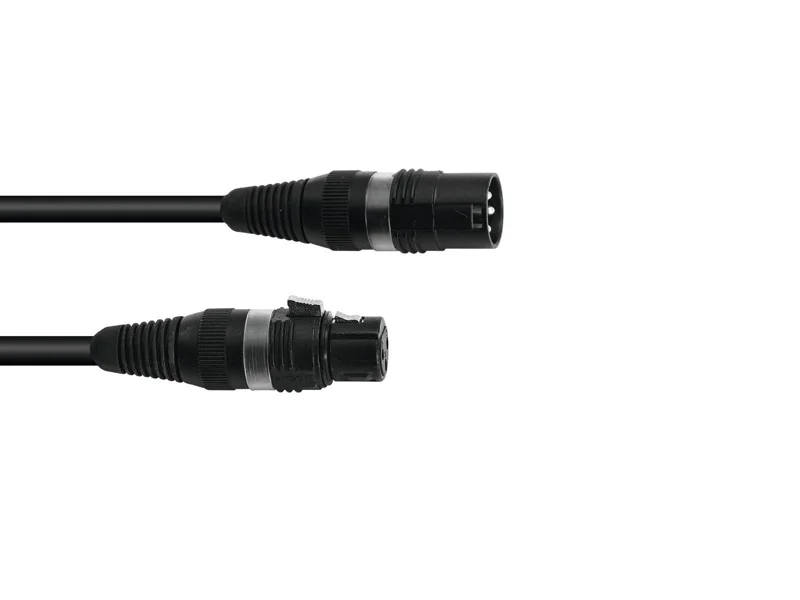

Plug 1: HICON HI-XCF3N-BLK XLR female, black
Plug 2: HICON HI-XCM3N-BLK XLR male, black
